Gold Dot® Duty Rifle Ammunition 223 Rem. (5.56x45mm)

SPEER LE® Gold Dot® Duty Rifle brings proven bullet technology to rifle platform. The Gold Dot® bullet was the first high performance, bonded-core bullet available in handgun ammunition, and has since set the bar for duty ammunition. The nation's number one law enforcement option is now available in rifle ammunition for agencies everywhere. These specially designed loads bring law enforcement rifle ammunition to the next level. Gold Dot rifle bullets are optimized to ensure expansion out of barrels down to 10" at a wide variety of velocities out to 200 yards. This kind of performance greatly increases the capabilities of duty rifles and gives law enforcement personnel a distinct advantage when it matters most. In addition, these new loads boast outstanding feeding in short, very short and standard length AR platforms. Like their handgun counterparts, the Gold Dot rifle bullets are constructed using Gold Dot technology. The process of joining the jacket and core one molecule at a time eliminates the potential for the leading cause of bullet failure—jacket/core separation. It also ensures impressive weight retention through barriers as tough as auto-glass. In addition to being tough, Gold Dot rifle loads boast outstanding accuracy. Exact tolerances and unprecedented bullet uniformity of jacket thickness give Gold Dot rifle loads outstanding accuracy. In addition, these loads feature flash suppressed propellants and a muzzle velocity of up to 3000 fps. The versatility, reliability and superior construction of the new Speer LE Gold Dot Duty Rifle loads allow law enforcement agencies to utilize this tested and proven bullet technology in duty rifles with complete confidence.
Gold Dot® Duty Rifle Ammunition
Velocity:


Collapse Chart
Energy:


Collapse Chart
Wind Drift:


Wind Drift in Inches (at 10 MPH Crosswind)
Collapse Chart
Average Range:


Trajectory for a 100 yards zero with a sight height of 1.5 inches.
Collapse Chart
Long Range:


Trajectory for a 200 yards zero with a sight height of 1.5 inches.
Collapse Chart
Specifications:
Part Number: 24446
Bullet Style: GDSP
Caliber: 223 Rem. (5.56x45mm)
Test Barrel Length in Inches: 24
Bullet Weight (Grains/Grams): 55 / 3.56

Ballistic Coefficient: 0.222

Velocity in Feet Per Second

Velocity in Feet Per Second
Yards Velocity
Muzzle: 3220
100: 2782
200: 2383
300: 2019
400: 1692
500: 1409

Energy in Foot Pounds

Energy in Foot Pounds
Yards Energy
Muzzle: 1266
100: 945
200: 694
300: 498
400: 350
500: 242

Wind Drift in Inches (at 10 MPH Crosswind)

Wind Drift in Inches (at 10 MPH Crosswind)
Yards Wind Drift
100: 1.2
200: 5.3
300: 13.0
400: 25.3
500: 43.0

Average Range *

Average Range
Yards Average Range
50: -0.3
100:
200: -3.0
300: -12.2

Long Range *

Long Range
Yards Long Range
50: 0.5
100: 1.5
200:
300: -7.7
400: -24.2
500: -53.1


* Height of Bullet Trajectory in inches above or below line of sight if zeroed at yards. Sights 1.5 inches above bore line.

Product Tested

Wound Characteristics

Test Results

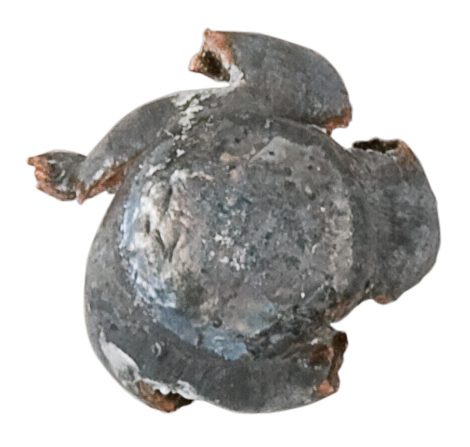

Recovered Bullet

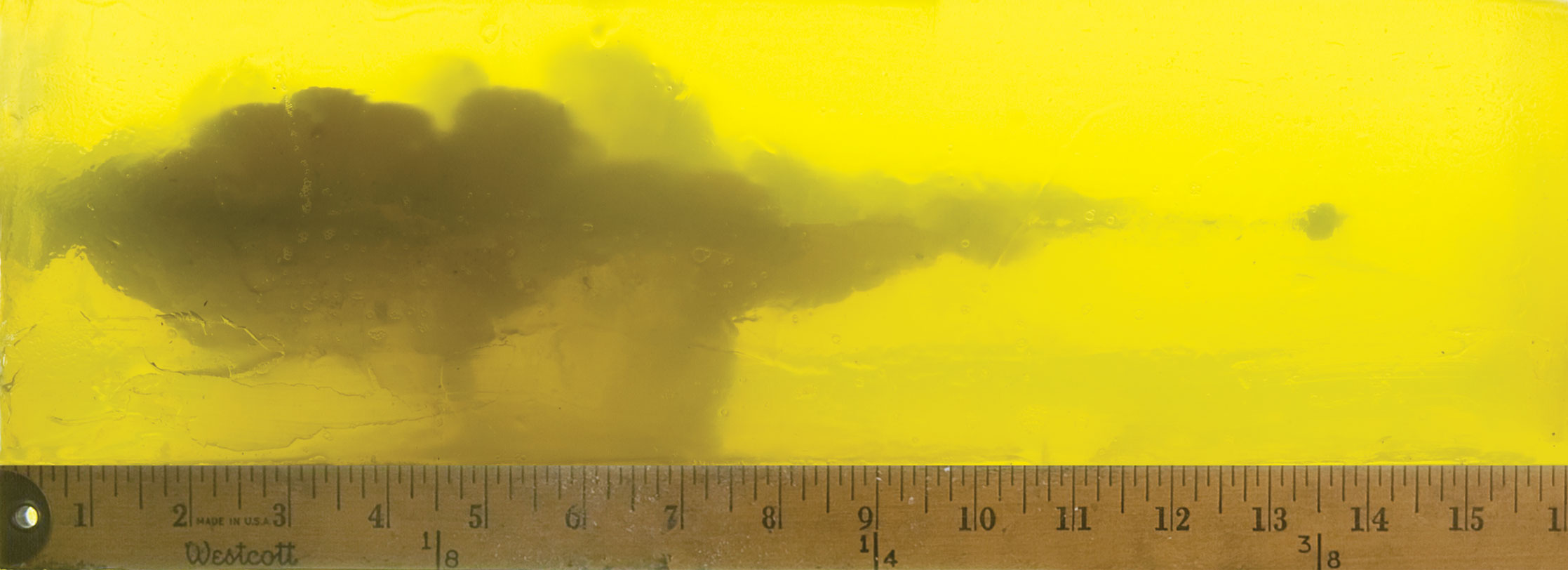

24446Wound CharacteristicsVelocity3013Recovered Bullet
223 Rem. (5.56x45mm)Penetration14.00
55Expansion.488
3220Retained Weight43.6
GDSP% Wt. Retained79.27
Collapse Chart

Product Tested

Wound Characteristics

Test Results

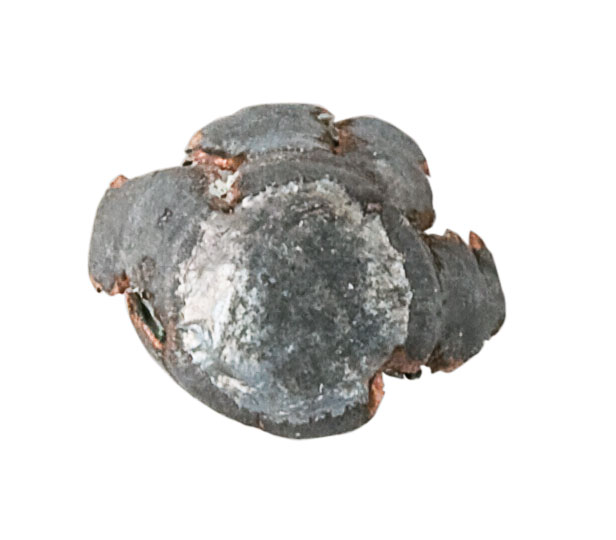

Recovered Bullet

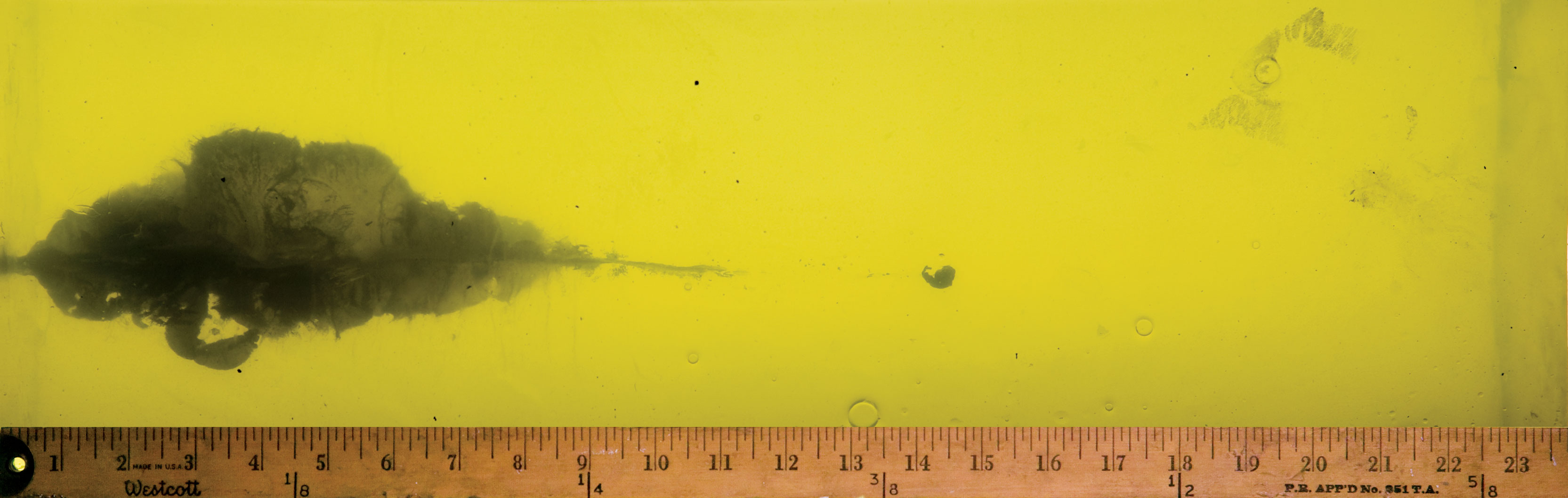

24446Wound CharacteristicsVelocity3013Recovered Bullet
223 Rem. (5.56x45mm)Penetration14.75
55Expansion.591
3220Retained Weight55.0
GDSP% Wt. Retained100
Collapse Chart

Product Tested

Wound Characteristics

Test Results

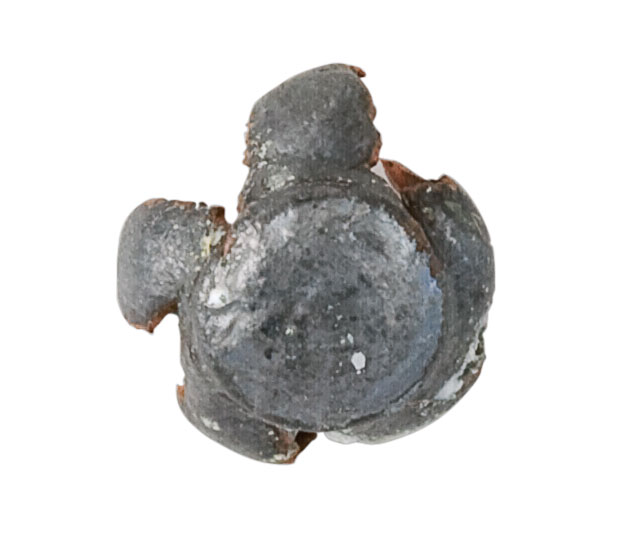

Recovered Bullet

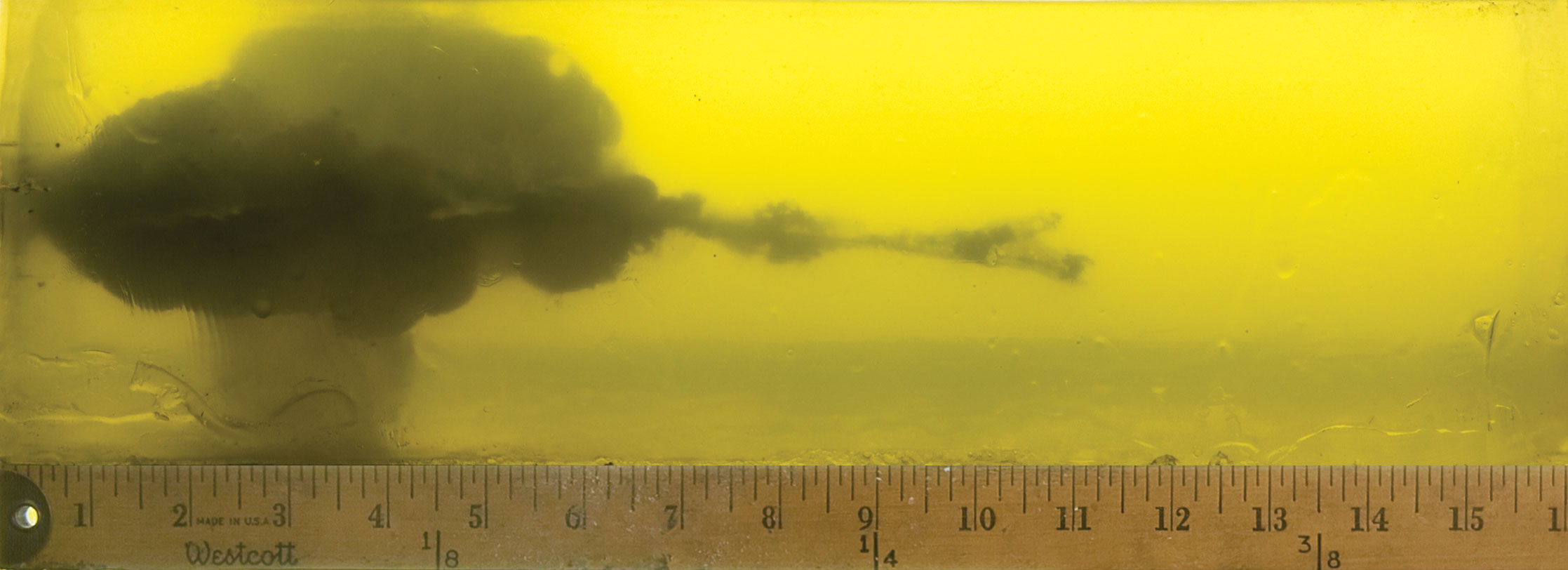

24446Wound CharacteristicsVelocity3013Recovered Bullet
223 Rem. (5.56x45mm)Penetration11.25
55Expansion.441
3220Retained Weight25.2
GDSP% Wt. Retained45.82
Collapse Chart

Product Tested

Wound Characteristics

Test Results

Recovered Bullet

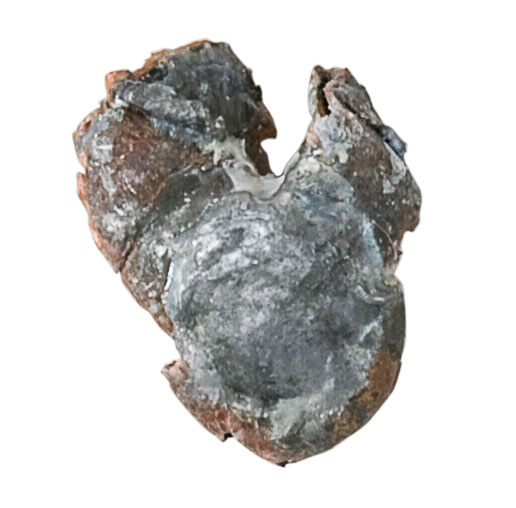

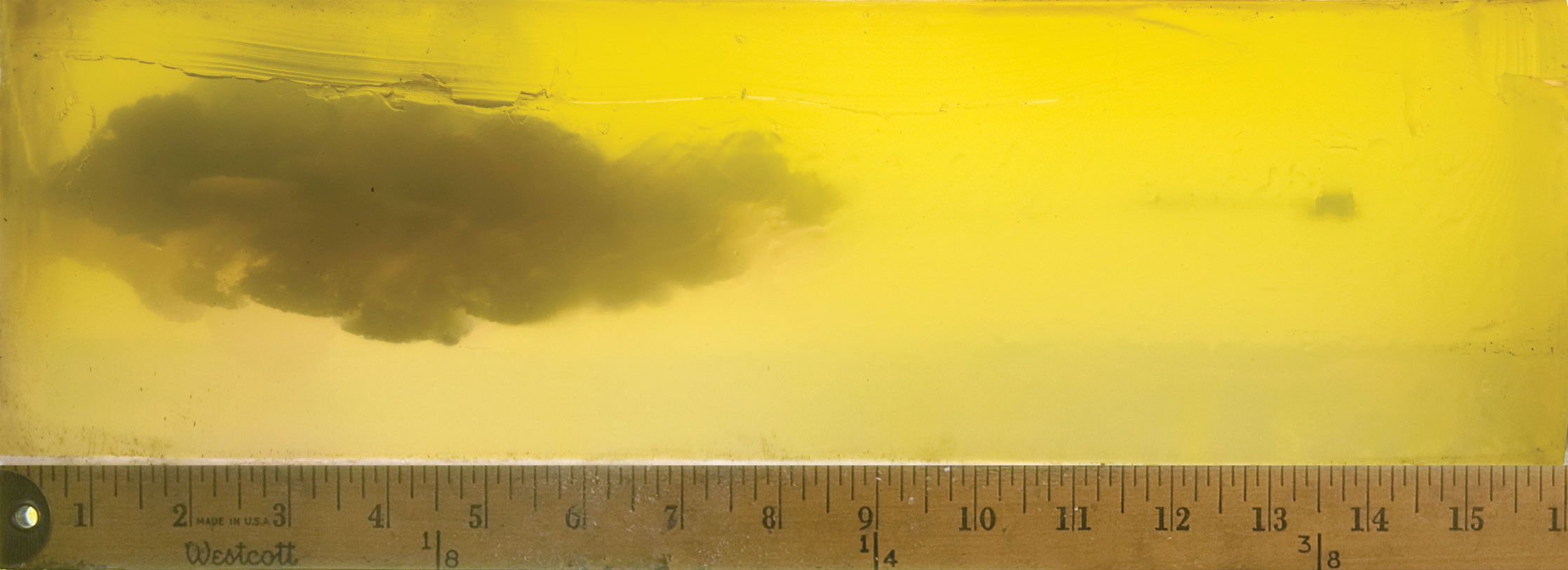

24446Wound CharacteristicsVelocity3013Recovered Bullet
223 Rem. (5.56x45mm)Penetration14.00
55Expansion.505
3220Retained Weight42.4
GDSP% Wt. Retained77.09
Collapse Chart

Product Tested

Wound Characteristics

Test Results

Recovered Bullet

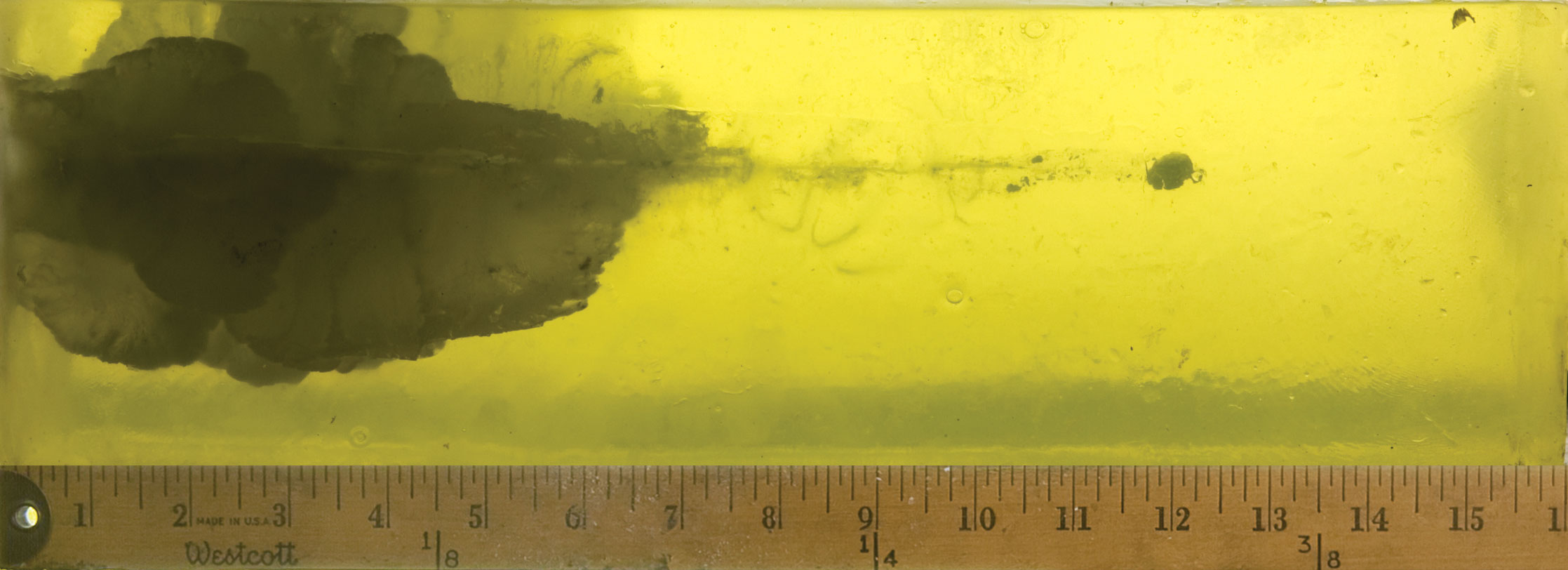

24446Wound CharacteristicsVelocity3013Recovered Bullet
223 Rem. (5.56x45mm)Penetration12.50
55Expansion.527
3220Retained Weight41.8
GDSP% Wt. Retained76.00
Collapse Chart

Product Tested

Wound Characteristics

Test Results

Recovered Bullet

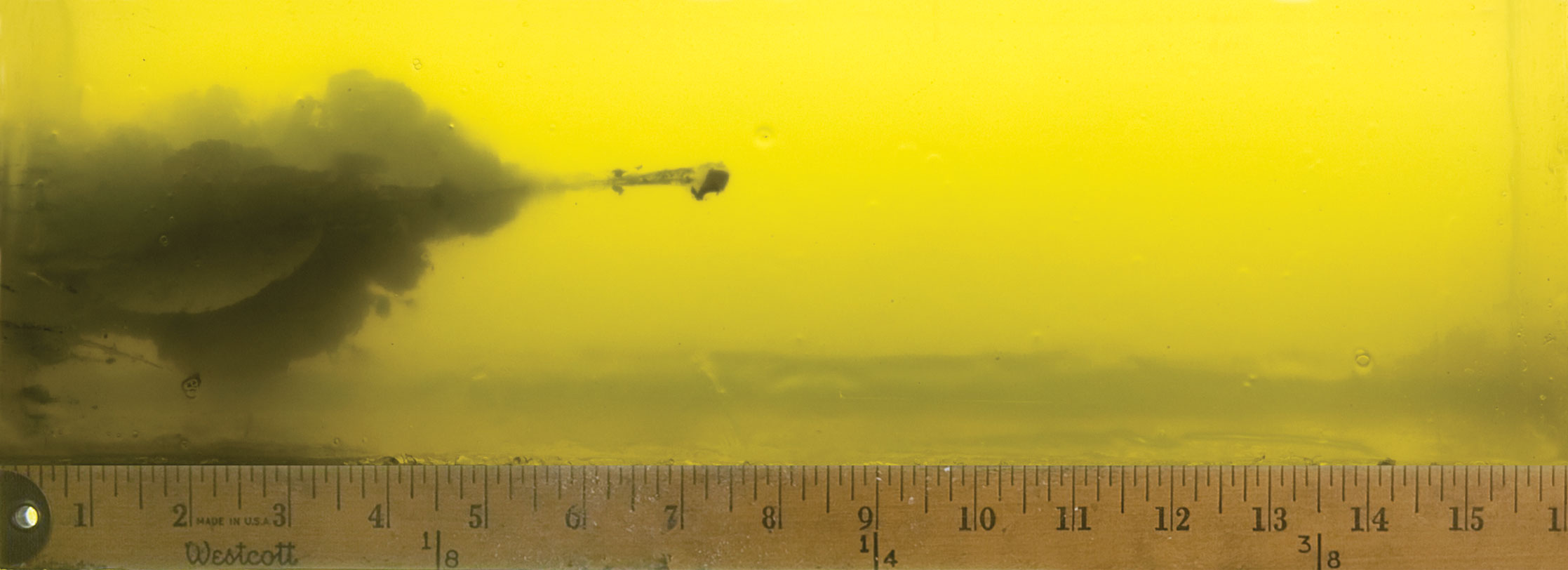

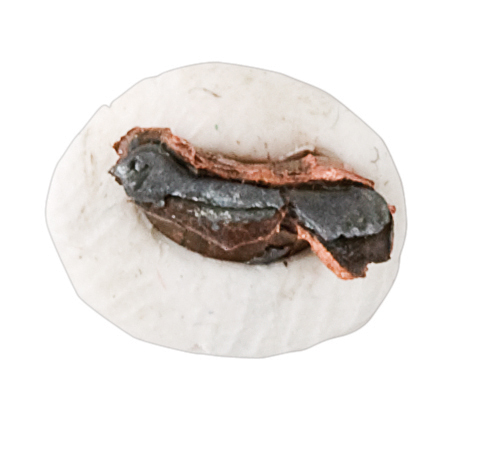

24446Wound CharacteristicsVelocity3013Recovered Bullet
223 Rem. (5.56x45mm)Penetration7.50
55Expansion.344
3220Retained Weight15.2
GDSP% Wt. Retained27.64
Collapse Chart
