Gold Dot® Duty Rifle Ammunition 308 Win.

SPEER LE® Gold Dot® Duty Rifle brings proven bullet technology to rifle platform. The Gold Dot® bullet was the first high performance, bonded-core bullet available in handgun ammunition, and has since set the bar for duty ammunition. The nation's number one law enforcement option is now available in rifle ammunition for agencies everywhere. These specially designed loads bring law enforcement rifle ammunition to the next level. Gold Dot rifle bullets are optimized to ensure expansion out of barrels down to 10" at a wide variety of velocities out to 200 yards. This kind of performance greatly increases the capabilities of duty rifles and gives law enforcement personnel a distinct advantage when it matters most. In addition, these new loads boast outstanding feeding in short, very short and standard length AR platforms. Like their handgun counterparts, the Gold Dot rifle bullets are constructed using Gold Dot technology. The process of joining the jacket and core one molecule at a time eliminates the potential for the leading cause of bullet failure—jacket/core separation. It also ensures impressive weight retention through barriers as tough as auto-glass. In addition to being tough, Gold Dot rifle loads boast outstanding accuracy. Exact tolerances and unprecedented bullet uniformity of jacket thickness give Gold Dot rifle loads outstanding accuracy. In addition, these loads feature flash suppressed propellants and a muzzle velocity of up to 3000 fps. The versatility, reliability and superior construction of the new Speer LE Gold Dot Duty Rifle loads allow law enforcement agencies to utilize this tested and proven bullet technology in duty rifles with complete confidence.
Gold Dot® Duty Rifle Ammunition
Velocity:


Collapse Chart
Energy:


Collapse Chart
Wind Drift:


Wind Drift in Inches (at 10 MPH Crosswind)
Collapse Chart
Average Range:


Trajectory for a 100 yards zero with a sight height of 1.5 inches.
Collapse Chart
Long Range:


Trajectory for a 200 yards zero with a sight height of 1.5 inches.
Collapse Chart
Specifications:
Part Number: 24458
Bullet Style: GDSP
Caliber: 308 Win.
Test Barrel Length in Inches: 24
Bullet Weight (Grains/Grams): 168 / 10.89

Ballistic Coefficient: 0.446

Velocity in Feet Per Second

Velocity in Feet Per Second
Yards Velocity
Muzzle: 2650
100: 2453
200: 2265
300: 2085
400: 1912
500: 1751

Energy in Foot Pounds

Energy in Foot Pounds
Yards Energy
Muzzle: 2619
100: 2244
200: 1913
300: 1621
400: 1364
500: 1143

Wind Drift in Inches (at 10 MPH Crosswind)

Wind Drift in Inches (at 10 MPH Crosswind)
Yards Wind Drift
100: 0.7
200: 3.2
300: 7.7
400: 14.0
500: 23.0

Average Range *

Average Range
Yards Average Range
50: -0.1
100:
200: -4.3
300: -15.4

Long Range *

Long Range
Yards Long Range
50: 1.0
100: 2.1
200:
300: -9.0
400: -25.7
500: -52.4


* Height of Bullet Trajectory in inches above or below line of sight if zeroed at yards. Sights 1.5 inches above bore line.

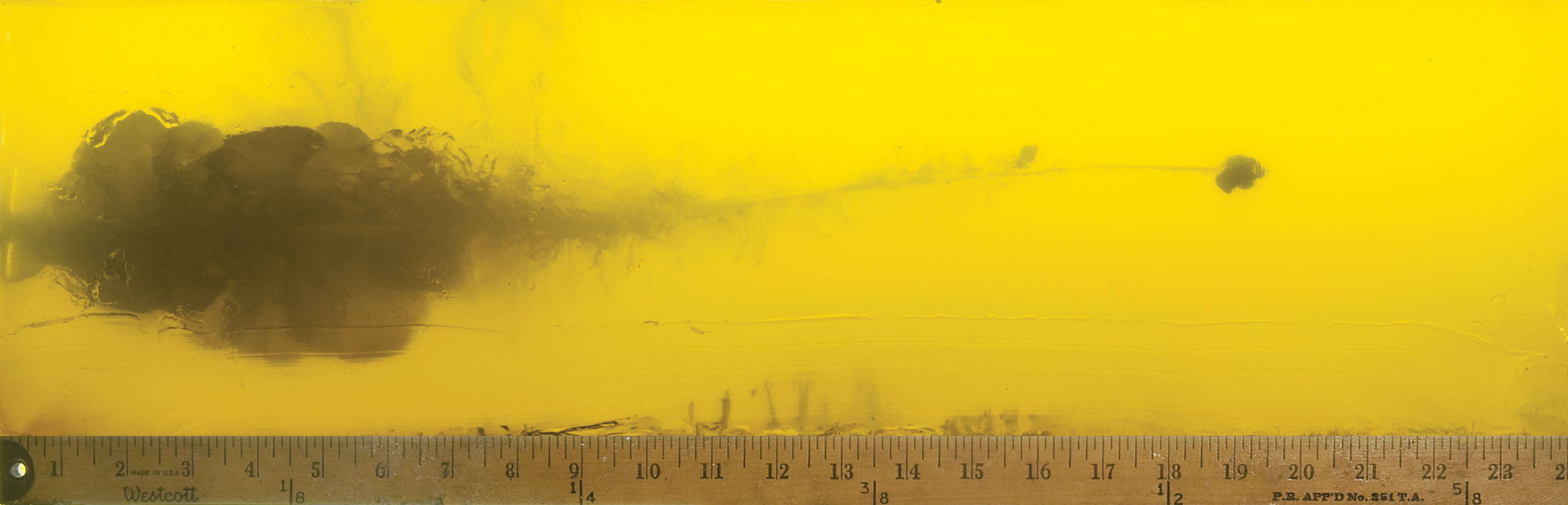

Product Tested

Wound Characteristics

Test Results

Recovered Bullet

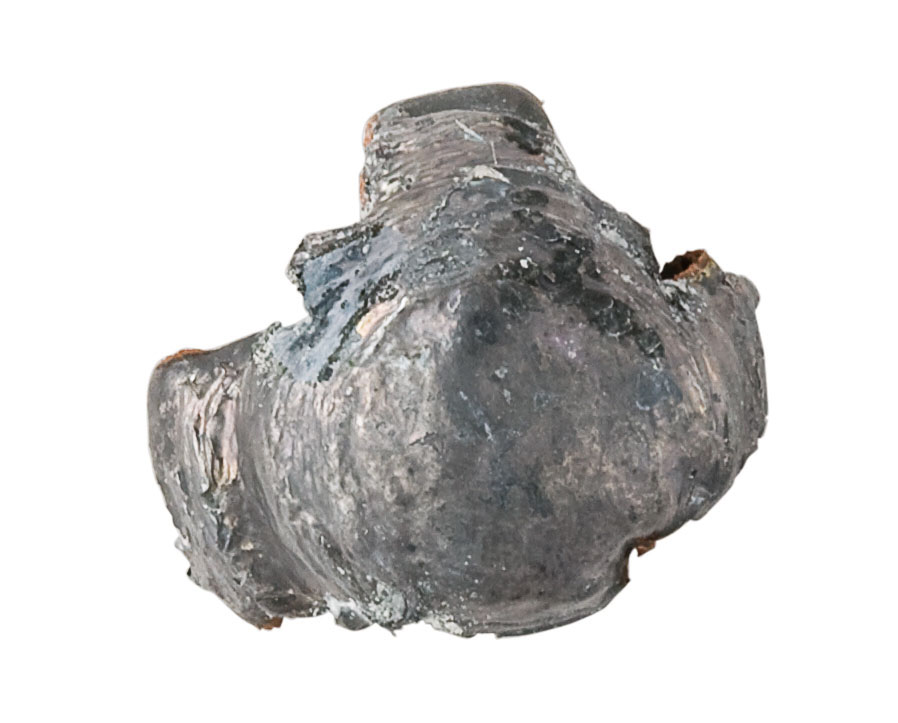

24458Wound CharacteristicsVelocity2542Recovered Bullet
308 Win. (7.62x51mm)Penetration19.62
168Expansion.762
2650Retained Weight156.4
GDSP% Wt. Retained93.10
Collapse Chart

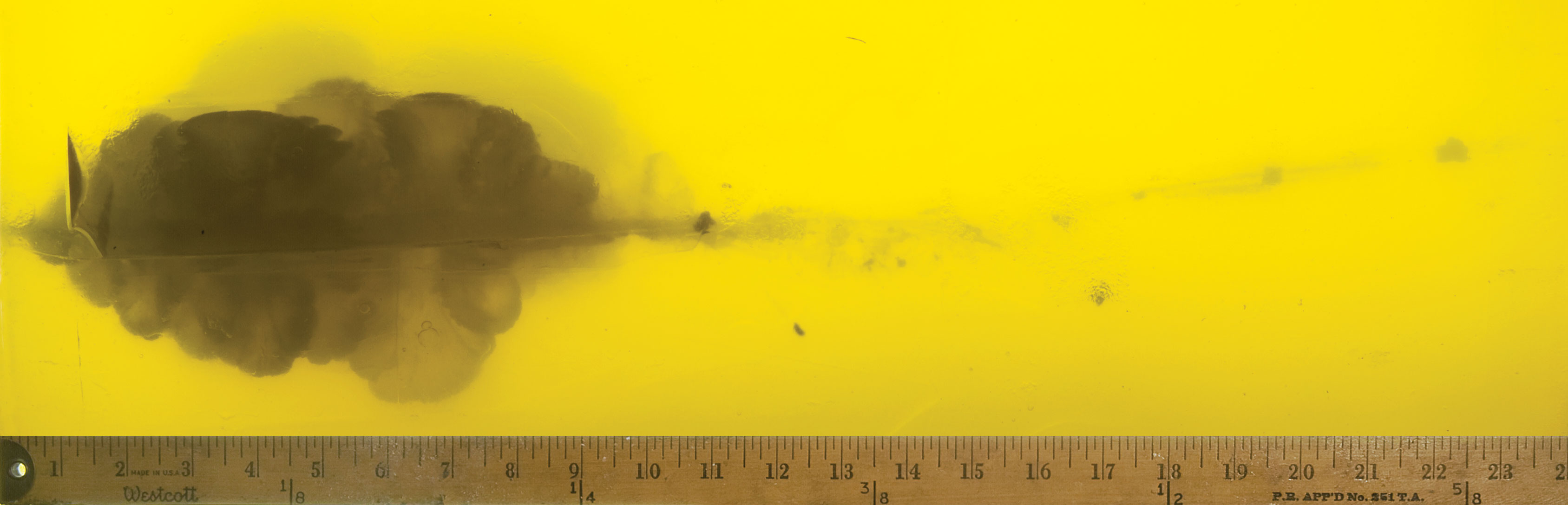

Product Tested

Wound Characteristics

Test Results

Recovered Bullet

24458Wound CharacteristicsVelocity2542Recovered Bullet
308 Win. (7.62x51mm)Penetration22.50
168Expansion.497
2650Retained Weight150.3
GDSP% Wt. Retained89.46
Collapse Chart

Product Tested

Wound Characteristics

Test Results

Recovered Bullet

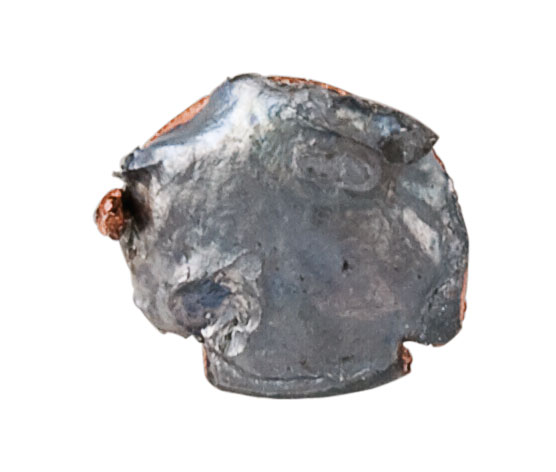

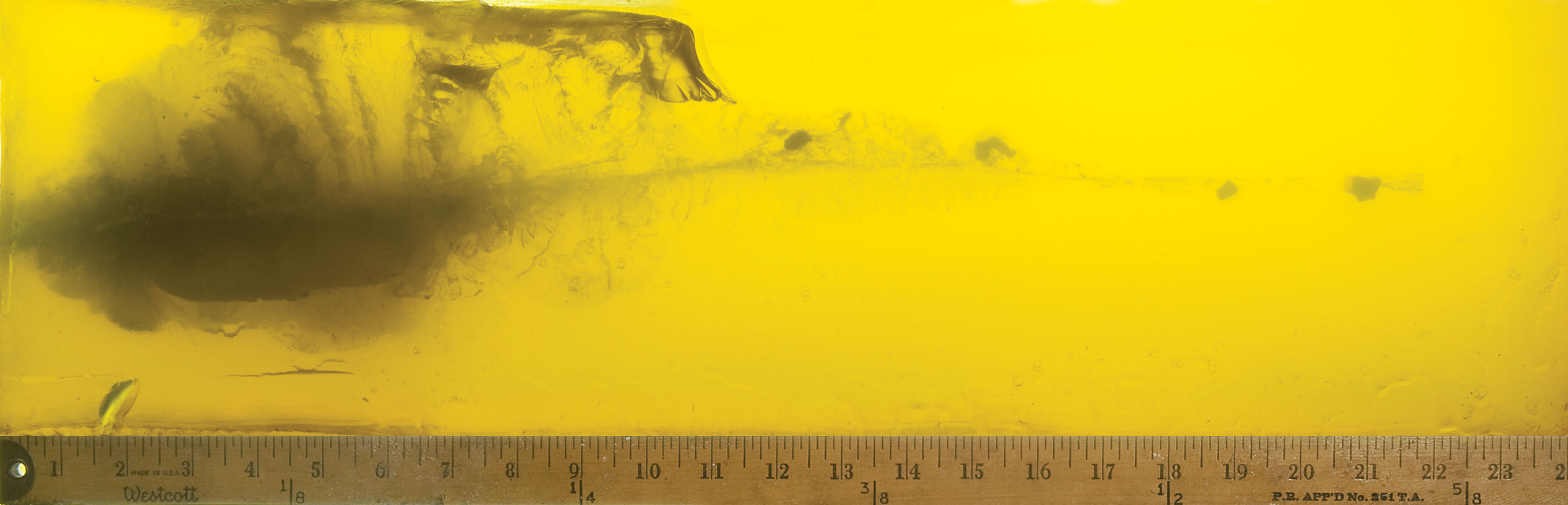

24458Wound CharacteristicsVelocity2542Recovered Bullet
308 Win. (7.62x51mm)Penetration21.25
168Expansion.478
2650Retained Weight130.8
GDSP% Wt. Retained77.86
Collapse Chart

Product Tested

Wound Characteristics

Test Results

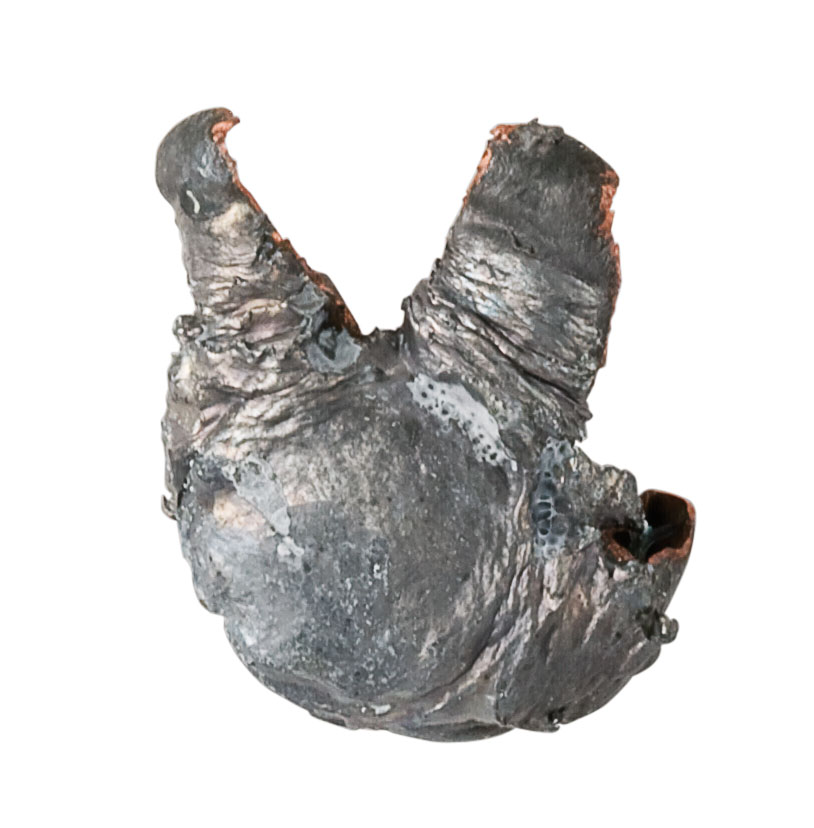

Recovered Bullet

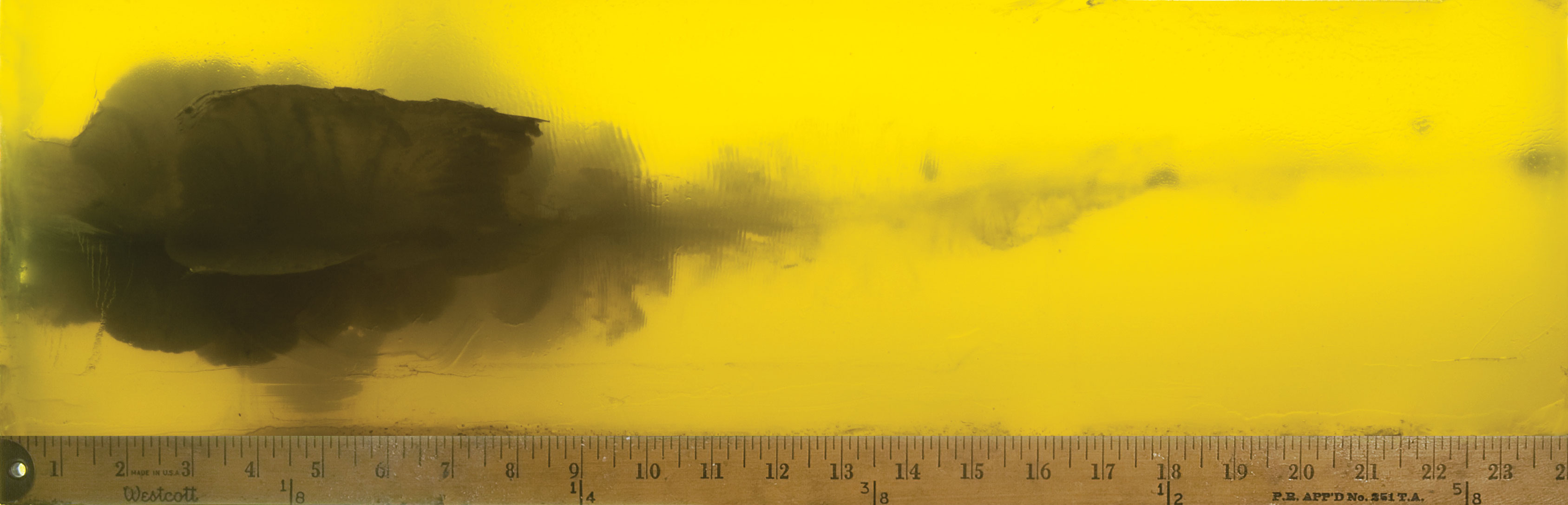

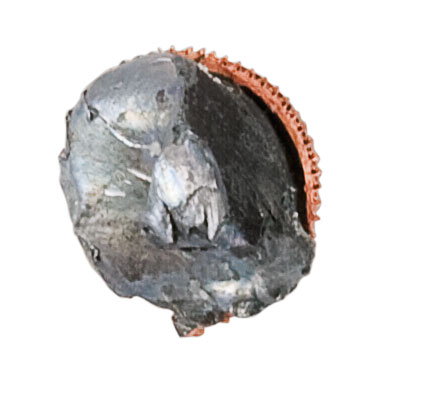

24458Wound CharacteristicsVelocity2542Recovered Bullet
308 Win. (7.62x51mm)Penetration24.00
168Expansion.370
2650Retained Weight112.2
GDSP% Wt. Retained66.79
Collapse Chart

Product Tested

Wound Characteristics

Test Results

Recovered Bullet

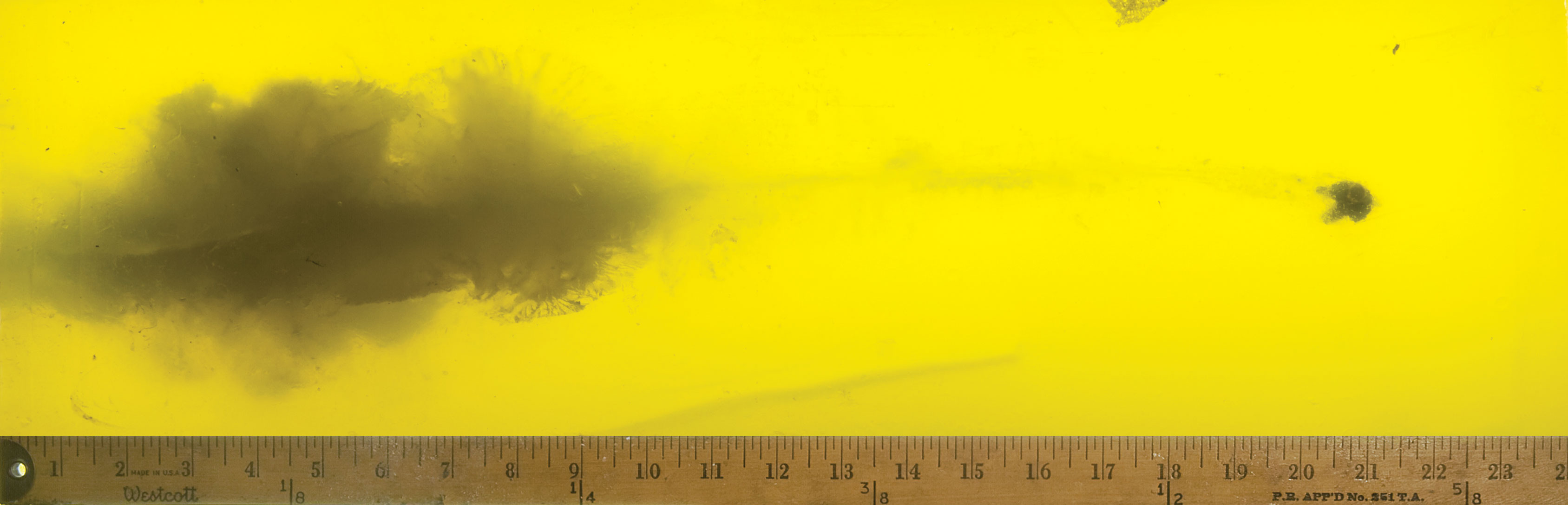

24458Wound CharacteristicsVelocity2542Recovered Bullet
308 Win. (7.62x51mm)Penetration21.125
168Expansion.916
2650Retained Weight153.4
GDSP% Wt. Retained91.31
Collapse Chart

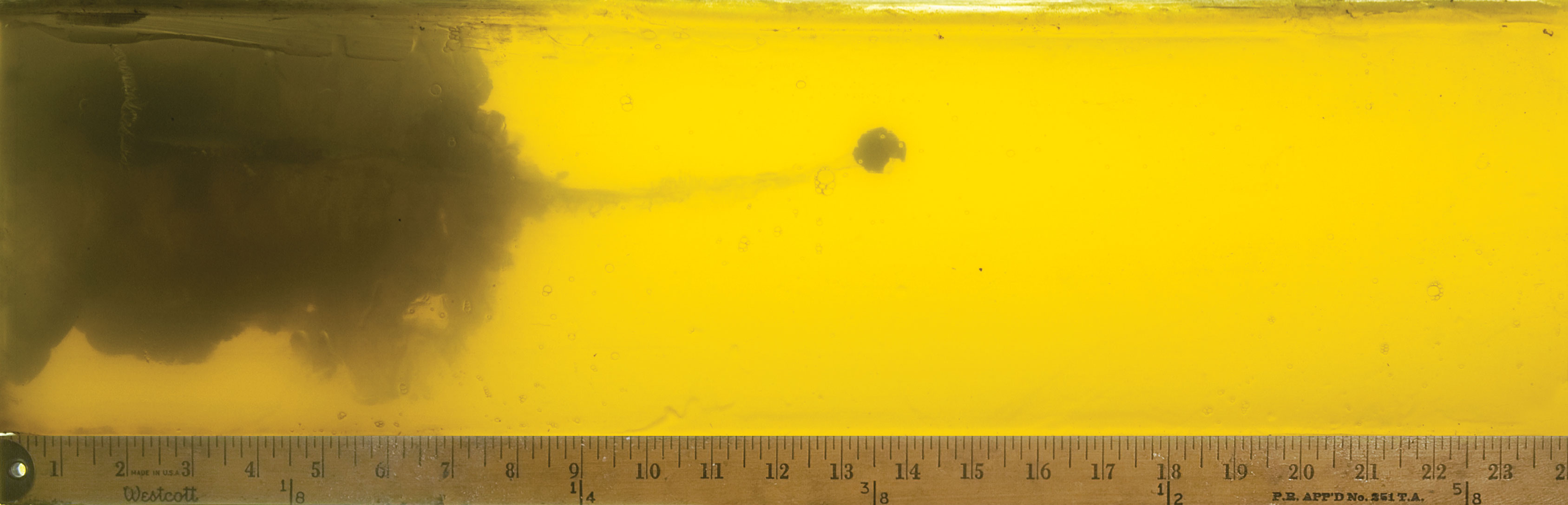

Product Tested

Wound Characteristics

Test Results

Recovered Bullet

24458Wound CharacteristicsVelocity2542Recovered Bullet
308 Win. (7.62x51mm)Penetration13.875
168Expansion.887
2650Retained Weight116.9
GDSP% Wt. Retained69.58
Collapse Chart
